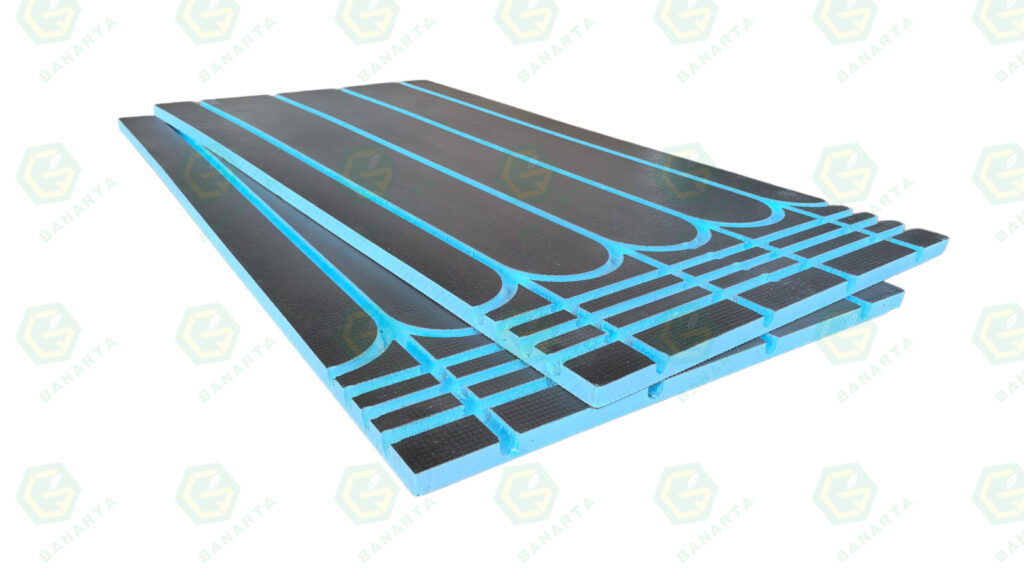

What is grooved XPS tile Backer Board?
The Grooved XPS Tile Backer Board is a specialized and innovative product designed explicitly for underfloor heating systems. It plays a crucial role in enhancing the performance, efficiency, and durability of such heating setups, making it a popular choice among homeowners, contractors, and architects.
Product Structure and Materials
—Core Material The board is primarily made from high – quality extruded polystyrene (XPS). XPS board is a kind of excellent thermal insulation foam which has many advantages, such as waterproof, high compressive strength, ETC.
.

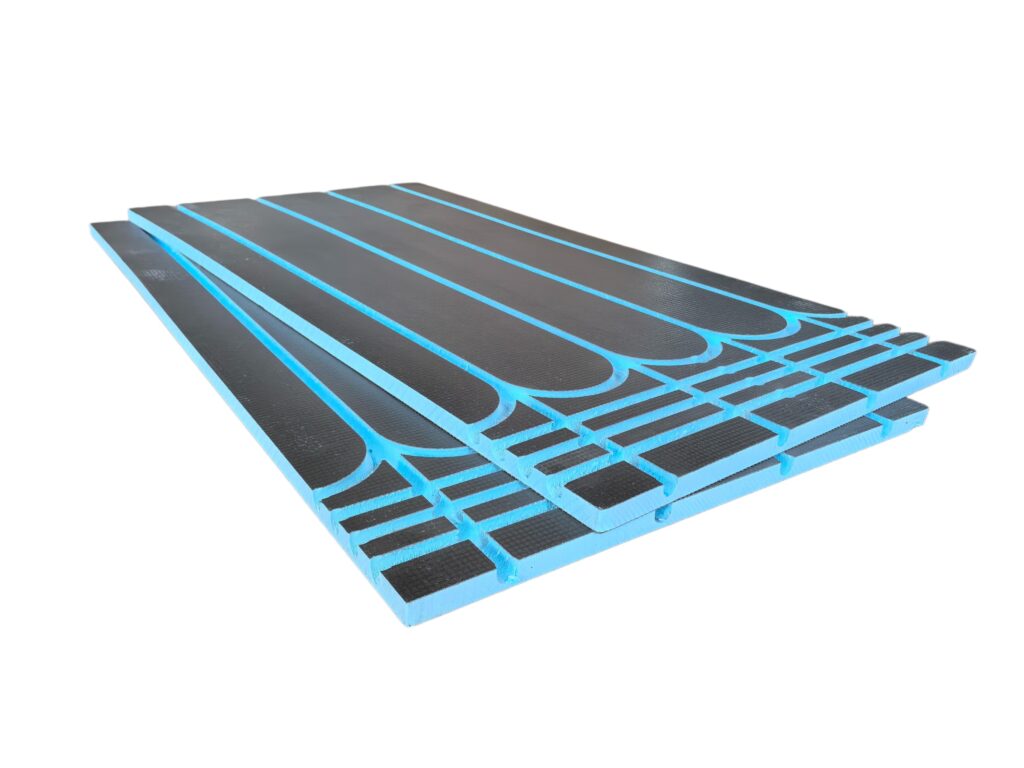

—Grooved Design The grooves are careful designed and spaced. It can be used to neatly route the heating pipes. This not only provides a secure and organized way to install the pipes but also helps in evenly distributing the heat.
—Surface Finish One the surface of the grooved XPS tile backer board, there is a 1mm coating on either side. It enhances the strength and durability of the board, making it more resistant to impacts and wear. It also helps the tiles adhere firmly to the board, reducing the risk of tiles coming loose over time.
Key Benefits
- Exceptional Thermal Insulation
Because of the very low thermal conductivity of XPS foam board, it is highly effective in preventing heat loss. As a result, the heating system can operate more efficiently.
Compared to traditional heating methods , it can achieve the same level of warmth in a room while consuming less energy.
This not only reduces the overall energy consumption but also leads to lower heating costs for the homeowner. - Even Heat Distribution
The grooved XPS Tile Backer Board ensures even heat distribution.
It eliminates cold spots in the room, providing a consistent and comfortable warmth throughout and create a more uniform temperature environment. - Moisture Resistance
The closed – cell structure of the XPS material makes the board highly moisture – resistant. This moisture resistance also contributes to the long – term durability of the board and the entire underfloor heating system. It can withstand humid conditions without losing its insulation properties or structural integrity. - Space – Saving
For underfloor heating systems, when used with the Grooved XPS Tile Backer Board, offer a significant space – saving advantage.In smaller rooms or areas with limited wall space, this can be extremely beneficial. - Design Flexibility
The Grooved XPS Tile Backer Board is compatible with various types of flooring materials. Whether you prefer tile, wood, laminate, or carpet, the board can be installed beneath these different floor coverings. - Quick Heat Response
Compared to traditional radiators, underfloor heating systems with XPS insulation, typically have a faster heat response time. This means that when the heating system is turned on or the temperature setting is adjusted, the room can reach the desired temperature more quickly. - Reduced Noise
The Grooved XPS Tile Backer Board further contributes to this quiet operation. This is particularly beneficial in bedrooms, living areas, or any space where a peaceful atmosphere is desired.
Longevity
The XPS material is resistant to many environmental factors. Its closed – cell structure makes it resistant to pests, as insects and rodents cannot easily penetrate the board. The board provides a stable base for the flooring above, and its moisture – resistant properties help protect against potential moisture – related damage to the floor covering.
Installation Process
—Subfloor Preparation
The subfloor should be clean, dry, and free of any debris, cracks, or uneven surfaces. If the subfloor is uneven, a leveling adhesive layer may need to be applied.
—Board Installation
Start installation in a corner of the room, the board is placed with the grooved side facing up. If necessary, the boards can be trimmed to fit around edges, corners, and any obstacles in the room, such as pipes or columns. To secure the boards to the subfloor, adhesive can be applied. In some cases, especially for larger installations or when dealing with certain types of subfloors, fasteners may also be used. It is important to press down firmly on the boards during installation to eliminate any gaps or air pockets. Gaps or air pockets can reduce the insulation effectiveness and lead to uneven heat distribution.
—Pipe Installation (for Hydronic Systems)

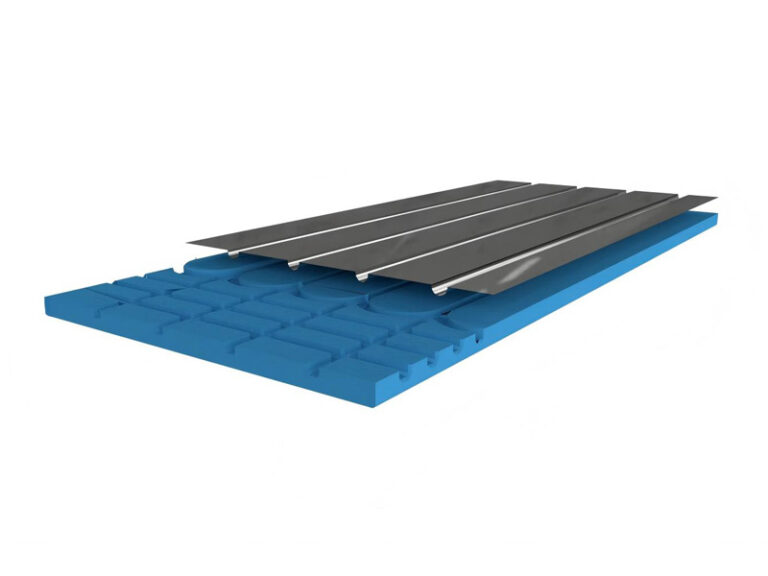

If the underfloor heating system is a hydronic system (using hot water in pipes), the heating pipes are placed in the grooves of the XPS board. The pipes should be carefully routed through the grooves, ensuring a proper and even spacing between the pipes. Once the pipes are in place, they may need to be secured in the grooves using appropriate pipe clips or fasteners. The pipes are then connected to the hot water supply and return lines, which are usually connected to a boiler or other heat source.
—Tile Installation (if applicable)
After the XPS board and heating pipes are installed, a layer of tile adhesive is spread over the XPS board. The tile adhesive should be spread evenly to ensure proper adhesion of the tiles. The tiles are then carefully placed on the adhesive, following the desired tile pattern.
