Aluminum Faced XPS Foam Panel

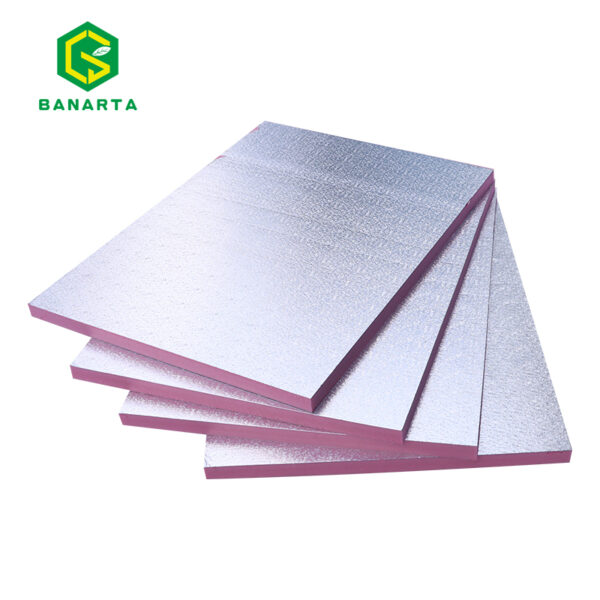

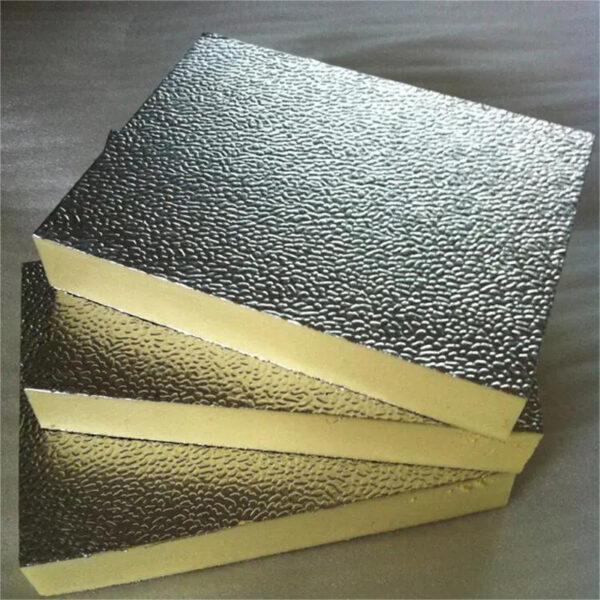

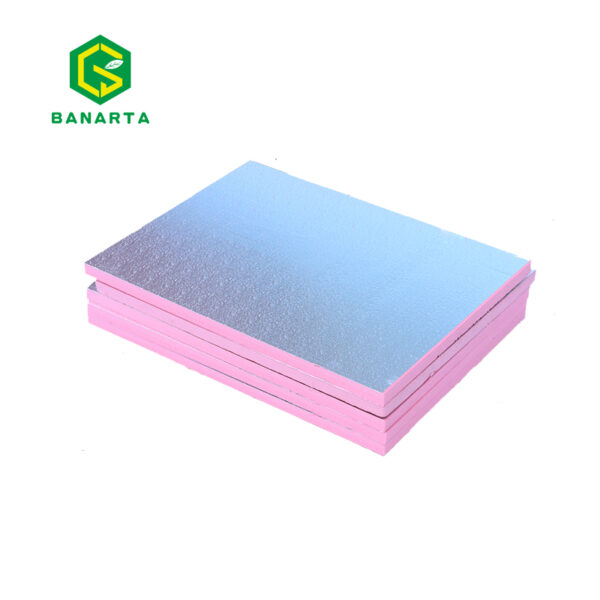

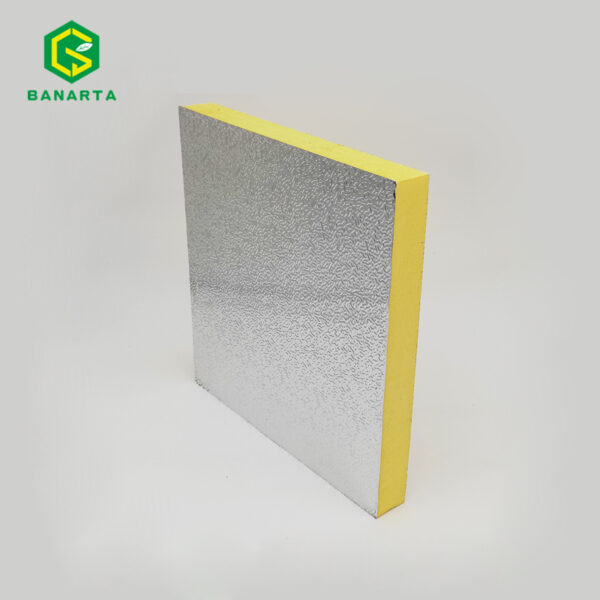

Aluminum Faced XPS Foam Insulation Panel

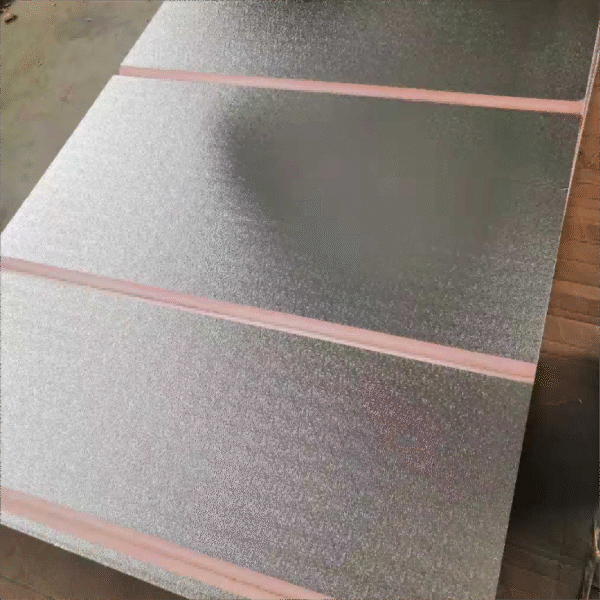

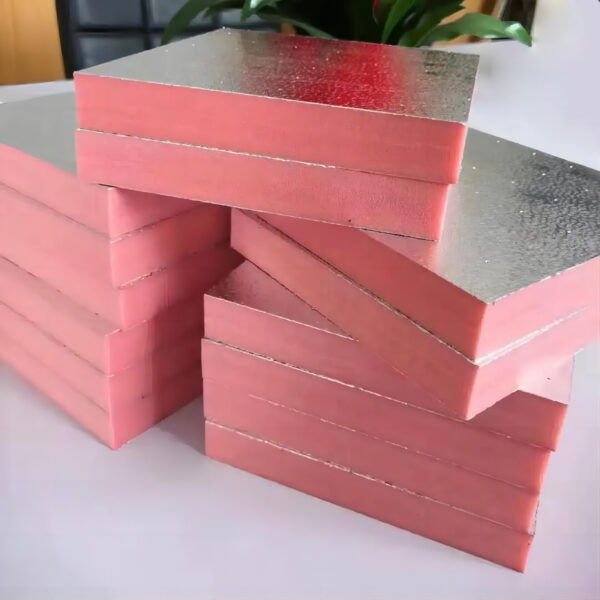

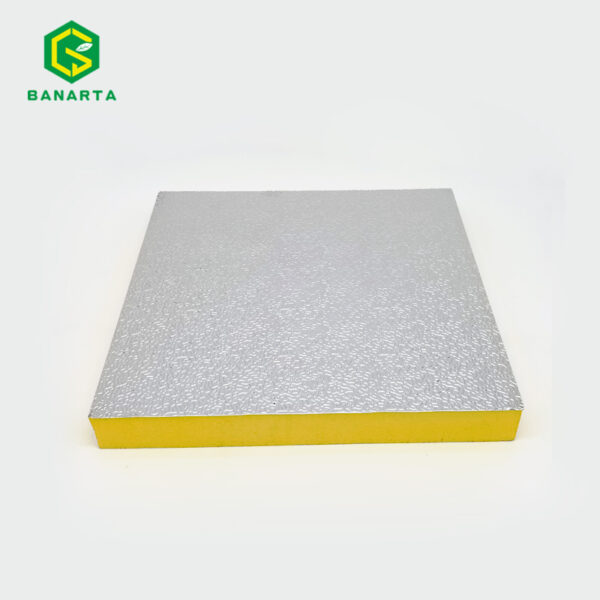

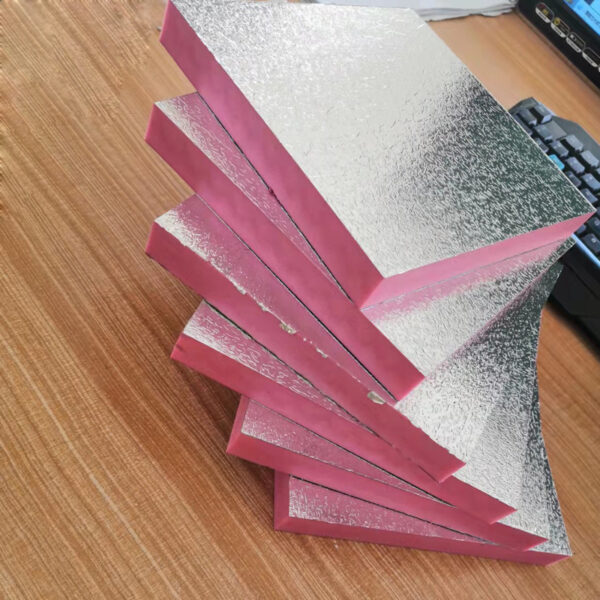

Aluminum foil faced XPS Insualation board is composed of extruded polystyrene foam board and aluminum foil.Cause Aluminum has excellent reflective perperties and it could protect XPS from damage, double sides aluminum foil faced XPS foam board has much better perporties such as thermal insulation, moisture-proof and compressive strength.Meanwhile, it gives the whole thermal system much better protection and decoration, make it has longer service life.

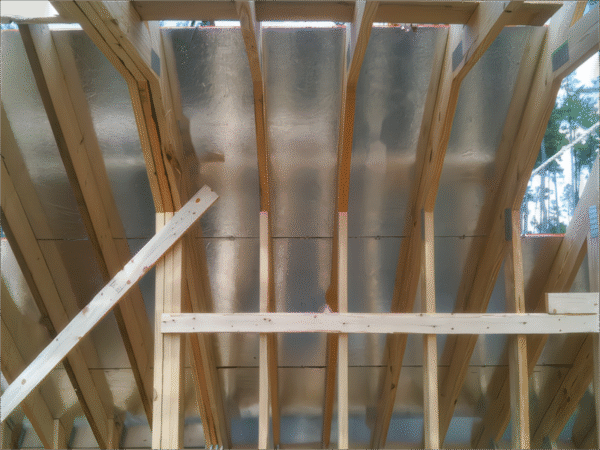

Therefore, it is widely used for heat preservcation applications in walls, flat concrete roofs and steel structures roofs etc. , as well as moisture resistance and heat preservation in parking platforms,runways and expressways etc.. .

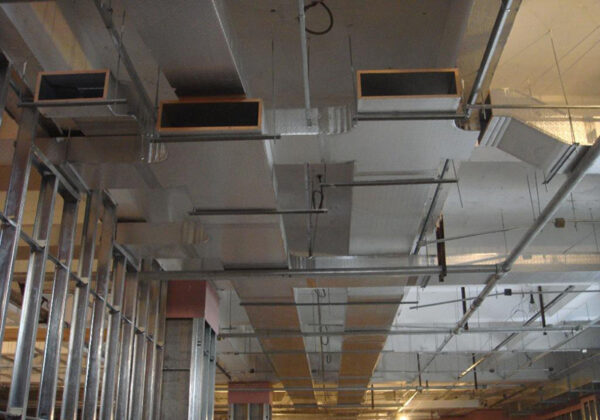

Meanwhile, more and more people start to use it for air duct of HAVC system because it has some advantages of lower cost, eco-friendly,easy operation,light weight and high compressive etc..

Paramenters Of Aluminum Faced XPS Foam Insulation Panel

Features	Specifications
Length	2000mm-4000mm or Customized
Width	1200mm/1220mm
Thickness	15mm/20mm/30mm/40mm Or Customized
Compressive Strength	250KPa++
Dimensional stability70℃±2℃,48h	1-2%

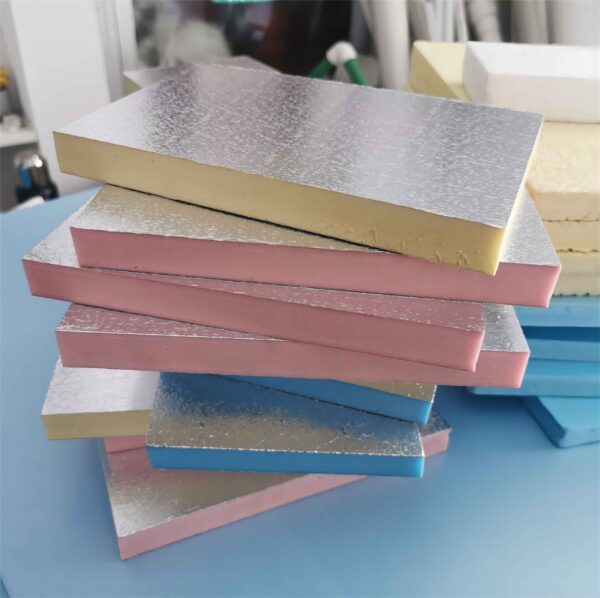

Color of XPS Foam Board	Yellow/Blue/White/Pink
Density of XPS Foam Board	30-40kg/m3
Thickness of Aluminum Foil	0.02mm-0.08mm
Water absorption	≤1.5%
Water absorption	≤3.0% （ng/m.s.pa ）
Water absorption	About 0.030W/M.K
Water absorption	-30℃-80℃

Advangtages Of Aluminum Faced XPS Foam Insulation Panel:

Light-weight & High Compressive Strength

XPS foam board itself has the characteristics of light weight and high strength. After coated with thick aluminum film on its both sides, it has further increased the strength.

Block the Sun’s Radiant Heat

Since it have aluminum foil on both side, the aluminum will reflect the rays of the sun during the heat of the day, therefore preventing the sun from penetrating the room or interior space.

Waterproof,Moisture-proof &Midew-proof

XPS foam board have tight cell-closed structure, it gives the board very low water absorption,moisture-proof and anti-penetration properties. After laminated with double sides aluminum foil, the properties are even better.

Long Service Life

Traditional rigid foam materials are prone to aging, causing them to absorb water and thus reduce their thermal insuIlation properties. Due to its excellent waterproof and moisture-proof performance, Aluminum foil faced XPS board can still maintain stable and excellent performance even under high water vapor pressure, with a service life of up to 30 years.

Easy Installation& Maintenance

It is easy to cut any shapes as you need. All you need to install this materials is only a knife and a measuring tape and a few nails to secure it in place. After installation, no need any special attention or maintenance.

Eco-Friendly &sustainable

It does not disintegrate, therefore, it is eco-friendly. And itselt could be recycled 100%, the recycled material could be used in the production again.
