Double Layers EPS Floorheating Panel Apply φ20mm Pipe

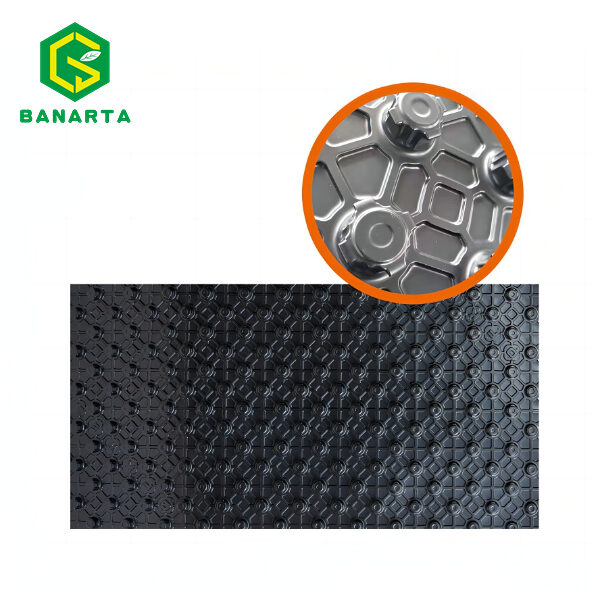

BS Series EPS Mouldar underfloor heating Panel, it is composed of Food-grade ultra-thin PS film(0.12mm)and EPS insulation board.The thickness of insulation layer is 20mm, and the pipe could be raised up 4mm.It is pressurized and heated twice by 1.5Kilograms high pressure under180℃ steam

  • Apply to φ16mm pipe
  • Seamless splicing
  • Staples-free
  • 100% Vrigin Materials
  • Zero formaldehyde
  • Fast installation
Spread the love

Introduction

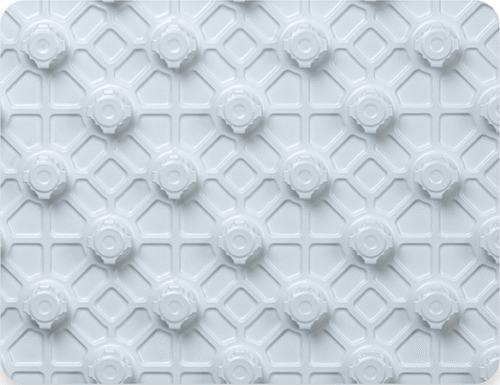

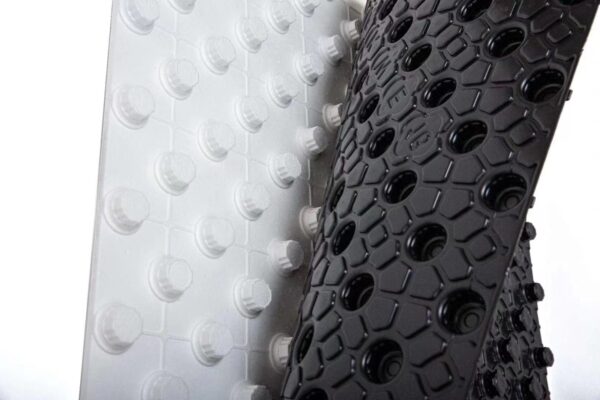

EPS Floorheating Panel,  it is a integrated panel with 2 layers. On the surface layer, it is plastic film which is strong enough to support the pipe routing . And the down layer is EPS insulation foam which could provide good thermal resistance to the UFH system.

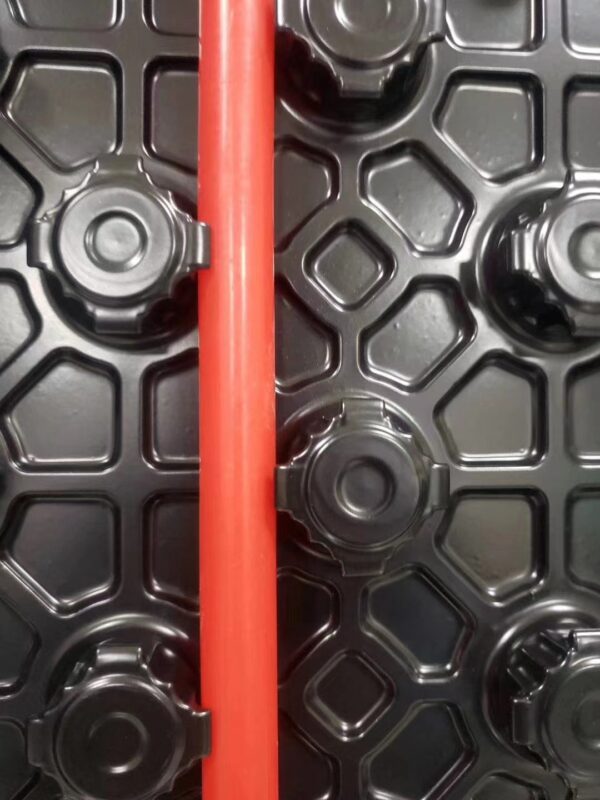

Its special mushroom design ensures quick and simple system to install. The main benefit of the system is the ready made pipe spacing and pipe retaining fixings.  It provides ready-made pipe securing and spacing.. Meanwhile, you can use it with traditional and liquid screeds. It is suitable for all pipework layouts.

Specifications:

Description BWE-20 BWE-20A
Thermal Conductivity at 10℃ 0.029W/(m.k) 0.031W/(m.k)
Heat Resistance 0.8(m2.k)W 0.8(m2.k)W
Compressive Strength About 250KPA About 250KPA
Applied Pipe Diameter φ20mm φ10mm
Total Thickness 43mm 33mm
Size(L*W)in mm 1350mm*820mm 1350mm*820mm
Thickness of Insulation Layer 20mm 10mm
Weight/M2 1250g 1150g
Standard Package 11.07M2 13.28M2

Advantages :

1. Saving the pipeline laying time 50% at most.

2. Improve the working efficiency,only one labor can finish the work.

3. Strong enough for people standing on .

4. Embedded pipeline design, protect the pipeline from damage

5. No need staples during installation, avoid damage of the insulation layer.

6. Uniform pipeline laying, keep the same distance between pipes.

EPS Floorheating Panel is a kind of floor heat distribution panel in hydronic underfloor heating system. It is cost-effectively and bring a lot of conviences . We have many different models available, welcome to contact us for more details.

Brief Introduction:

Features  φ10mm  φ16mm φ20mm
Panel Dimension 1325*790*26 (mm) 1370*820*42(mm) 1370*820*44(mm)
Total thickness 26mm 42mm 44mm
Based Board Thickness 12mm 20mm 20mm
Thickness of Pipe Fixing Layer 11mm 17mm 21mm
Thickness of pipe support  3mm
Thermal conductive About 0.034 W / M.K
 Color Black / Blue / Yellow / Grey
Compressive Strength 200-250kpa
Fire Rating B1
Working Temperature  -30-80
