Banarta

Radiant Floorheating Insulation Panel Apply to φ25mm Pipe

  • Apply to Hydronic Underfloor Heating
  • Apply to φ25mm pipe
  • Size:1330mm*750mm*48mm
  • Four Sides Interlock Design
  • Staples-free
  • 100% Vrigin Materials
  • B1 Grade Flamme Retardant
  • High Compressive Strength
  • Good Water Vapor Performance
  • Fast installation
  • Multi Colors Available
Spread the love

Introduction :

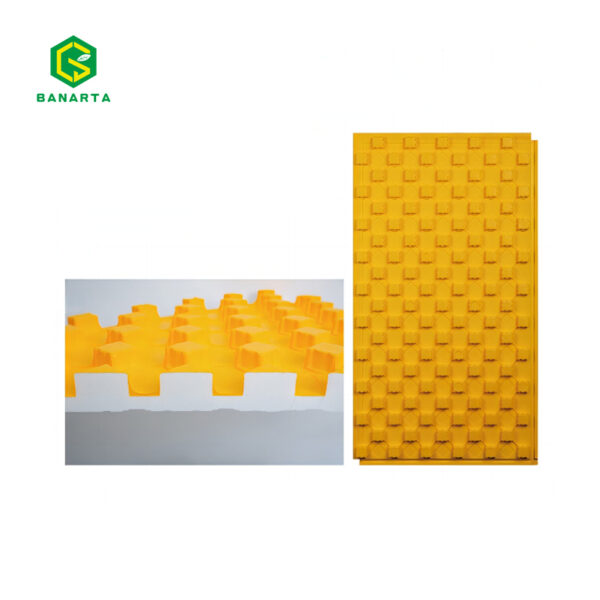

Radiant Floorheating Insulation Panel is a kind of integrated panel , it is composed of high density expanded polystyrene and food grade high impact HIPS film.

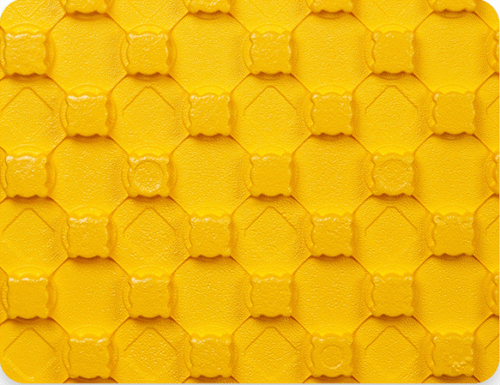

Its special mushroom design ensures that heating pipe completely encased in concreste. Pipe raise up design increases the area between heating pipe and concrete,enhence efficiency of heating transfering.

Four side edge interlock design makes installation very easy, no need any staples,free cutting, saving labor cost and time a lot.

One-piece design makes it good compressive strength , Water Vapor permeance and durability,100% virgin materials with B1 grade flame retardant makes its super quality.

Specifications :

Description BE-25
Thermal Conductivity at 10℃ 0.029W/(m.k)
Heat Resistance 0.8(m2.k)W
Total Thickness 48mm
Compressive Strength About 250KPA
Size(L*W)in mm 1330mm*750mm
Thickness of Insulation Layer 20mm
Weight/M2 1100g
Standard Package 10M2

Advantages :

1. Saving the pipeline laying time 50% at most.

2. Improve the working efficiency,only one labor can finish the work.

3. Strong enough for people standing on .

4. Embedded pipeline design, protect the pipeline from damage

5. No need staples during installation, avoid damage of the insulation layer.

6. Uniform pipeline laying, keep the same distance between pipes.

Radiant Floorheating Insulation Panel is a kind of floor heat distribution panel in hydronic underfloor heating system. It is cost-effectively and bring a lot of conviences . We have many different models available, welcome to contact us for more details.

How to install EPS underfloor heating panel
