Introduction:

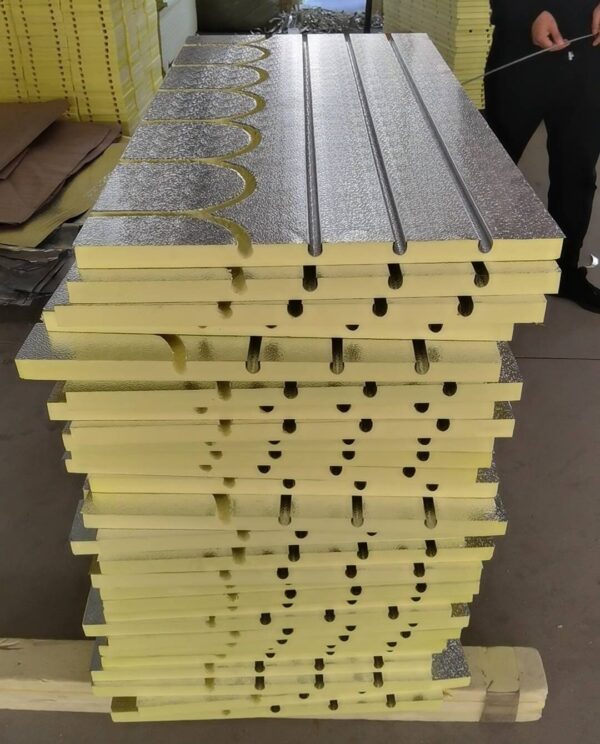

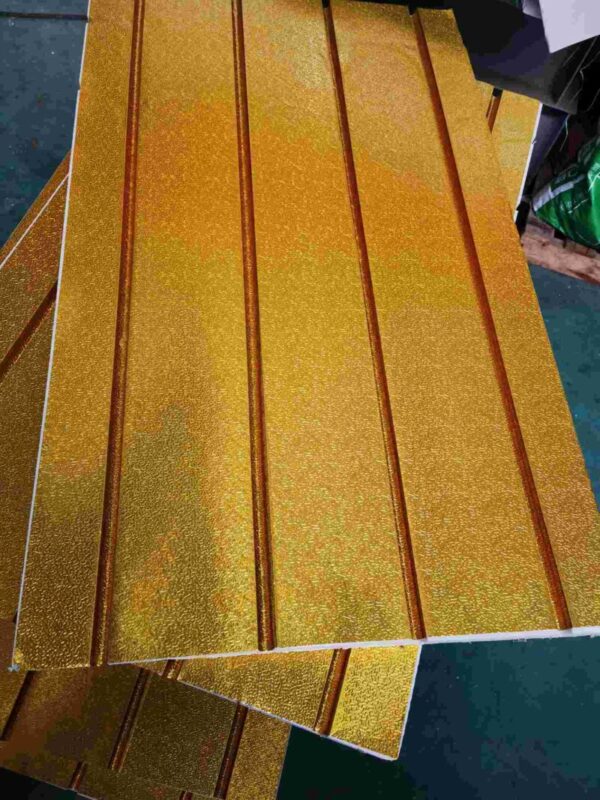

XPS Radiant Floorheating Board, Grooved XPS Foam Board faced with High heating transfer Aluminum Sheet, it is widely used as underfloor Heating panel in the water floor heating system.
As everyone knows, XPS Foam Board is a cell-closed rigid foam board with high compressive strength and very good thermal conductive, meanwhile, its water absorption is lower than 1.5%, also mildew and moisture proof . It has already been as a good option for Underfloor Heating Panel processing.

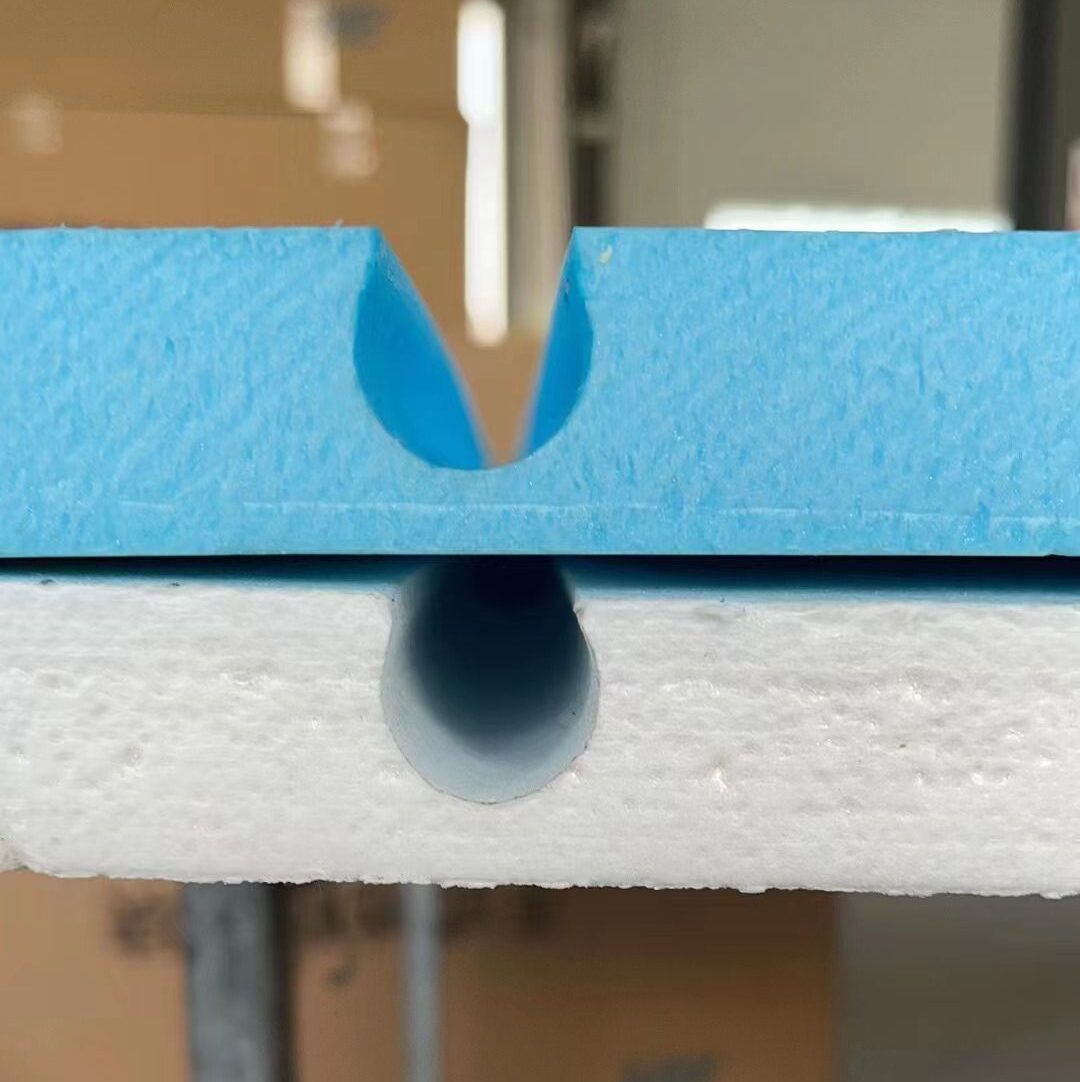

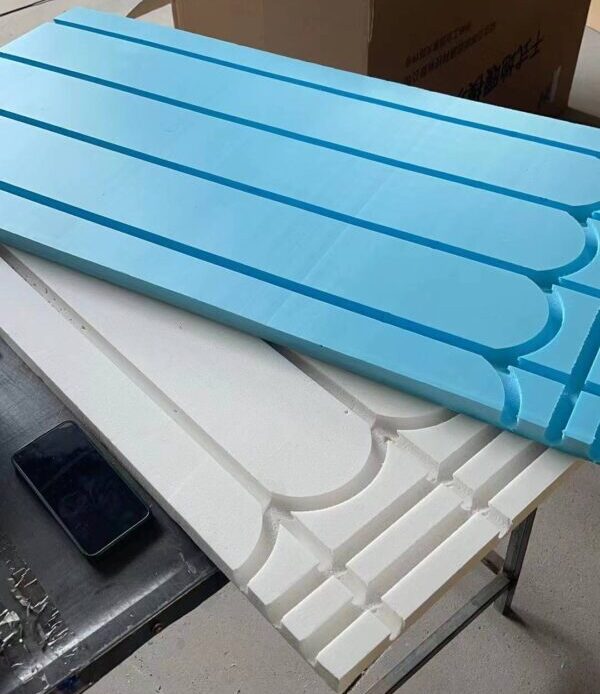

On the surface of XPS Radiant Floorheating Board, we can customize the pipe path and pipe size according to your requirements, it will make your installation much more easlier.

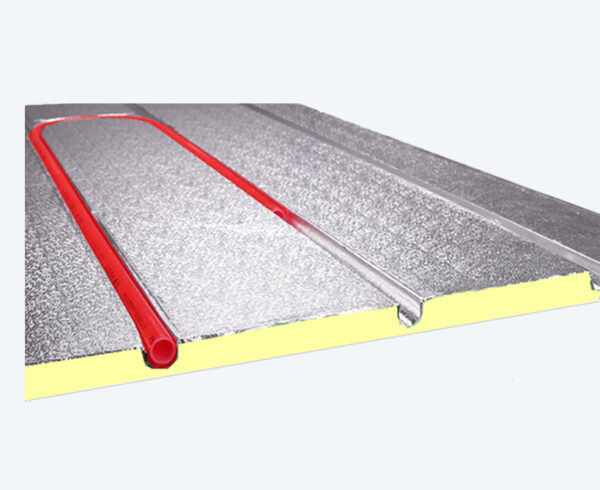

This Aluminum XPS Radiant Panel is an alternative to a screed type system when using water under floor heating systems. Wooden flooring or tiles can be laid directly on top without ground leveling again.
Specification:
| Features | Specifications |
| Panel Dimension | 1500mm*600mm (Or custom-made according to client’s requirements) |
| Thickness | 25mm-50mm available |
| Aluminum Thickness | Customized according to request |
| Applied Pipe Diameter | Φ16mm (or custom-made size.10mm and 20mm are acceptable) |
| Thermal conductive | About 0.028 W / M.K |
| Based board (XPS) Color | Blue / Yellow / White |
| Compressive Strength | ≥300kpa |
| Fire Rating | B1,B2,B3 |
| Working Temperature | -30℃-80℃ |
Advantages:
1. Saving the pipeline laying time 50% at most.
2. Improve the working efficiency，only one labor can finish the work.
3. Strong enough for people standing on .
4. Embedded pipeline design, protect the pipeline from damage
5. No need staples during installation, avoid damage of the insulation layer.
6. Uniform pipeline laying, keep the same distance between pipes.
More Details from video, pls click>>
Aluminum Faced Grooved XPS Foam Board For Underfloor Heating
