Introduction:
XPS Structural Insulated Panel is composed of graphite XPS foam core and thermosetting modified insulation board. Meanwhile, on the double sides, there are built-in fiberglass cement protection layer
It can replace the traditional external formwork and cooperate with special anchors. Also it coud be poured together with concrete, so there is no need to remove the formwork or do insulation later.

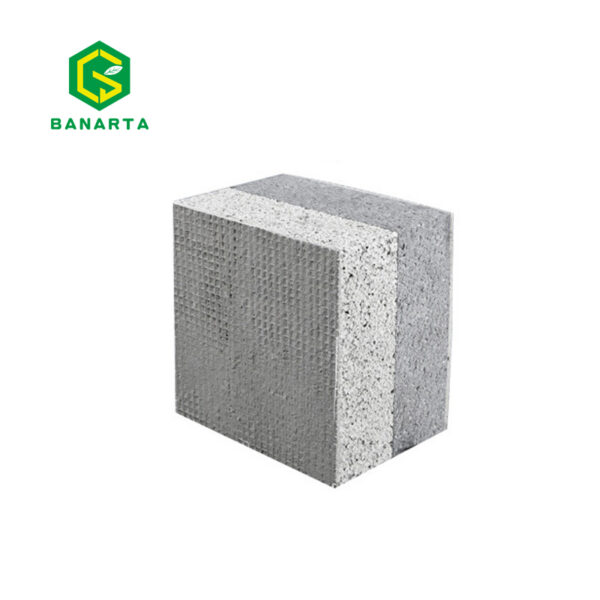

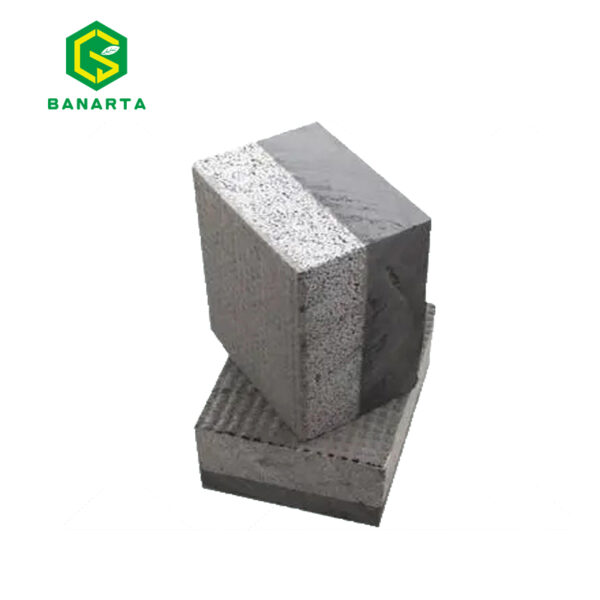

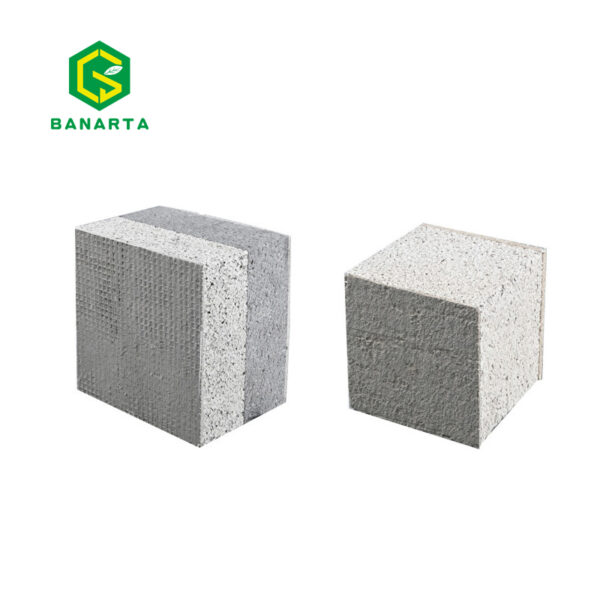

XPS Structural Insulated Panel’s basic structure is as below:
1. The first layer is 3-5mm built-in special fiberglass mesh.
1. The first layer is 3-5mm built-in special fiberglass mesh.
2. The second layer is graphite XPS foam board, thickness as per your design
3. The third layer is thermosetting modified insulation material, the thickness is more than 35mm.
4. The forth layer is 3-5mm built-in special fiberglass mesh
Speiciation
| ITEMS | PROPERTIES |
| Fire Rate | A Grade |
| Thermal Conductive | Graphite XPS Foam Core: 0.026W/M.K Thermosetting modified insulation board: 0.08W/M.K |
| Anti Destructive Load | ≥2500N |
| Dimension | Length: 2800mm-3300mm Width: 600mm Thickness: Customized |
Typical Applications:
The main applications of XPS Structural Insulated Panel is cold regions and meets ultra-low energy consumption requirements .
Main Advantages:
- Save construction time
- Eliminate the safety hazards of traditional insulation
- Save construction costs
- Avoid hollowing, cracking, falling off and other problems
- Have the same lifespan as the building
How does XPS Stuctural Insulation Panel install in construction
