Introfuction:

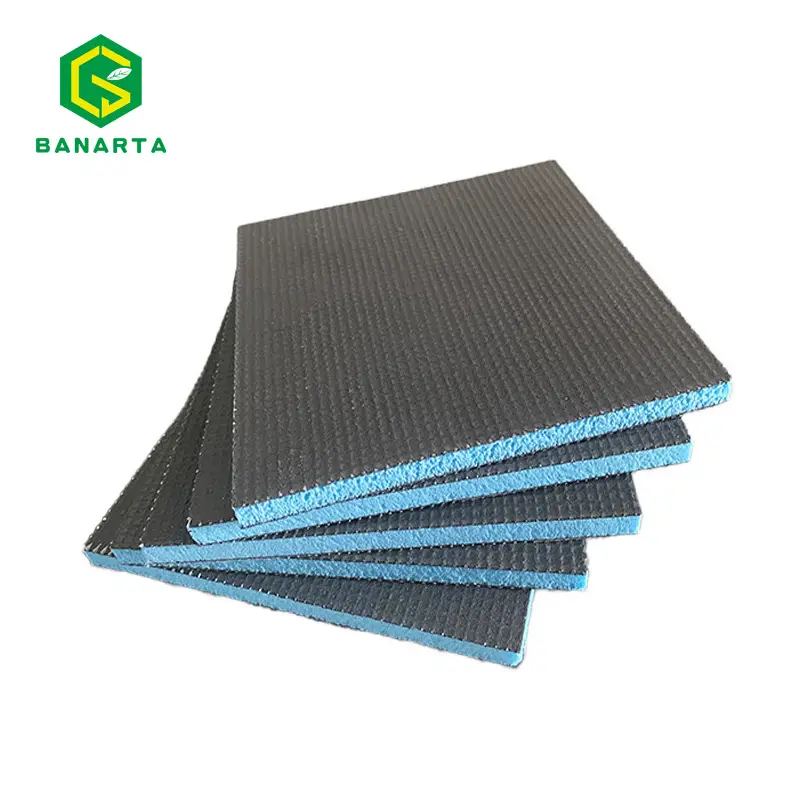

Cement Fiberglass Faced XPS Foam Tile Backer Board is a kind of water-proof panel, extruded polystyrene foam board and cement fiber are the main raw materials. And the double surfaces has fiberglass mesh and a thin cement polymer mortar. Nowdays ,many designer like to use XPS tile backer board used in the under floor system , floor, wall, ceiling etc. It acts as a very efficient thermal barrier.
Speiciation
| Features | Specifications |
| Density of XPS Foam Board | 30-45kg/m3 |
| Thermal Conductivity | 0.028-0.036w/m.k |
| XPS Foam Core Compressive Strength | 300kpa++ |
| Flexural Strength | 2.05±0.02Mpa |
| XPS Foam Core Color | Yellow/Blue/White/Pink/Green |
| Water Absorption(2-days immersion) | 0.2%by volume |
| Flammability | Class E |
Typical Applications:
Cement Fiberglass Faced XPS Foam Tile Backer Board has a wide application in many places.
It could be a watertight layer on walls ,floors in houses or hotels. Especially there are some wet areas , such as bathroom, shower room etc.. Or some other places needs to be insulated and waterproofed.
1. Because it has good water-proof performance, many people like to use it as a watertight layer on walls and floors in wet rooms and bathrooms.
2. As everyone konws, XPS foam is a rigid foam with good thermal resistance, therefore it also could be an insulation layer under floor heating to avoid heat loss.
3. Because it has very good compressive strength, it can be used as partition walls in wood or steel frames.
4. Thanks to it light weight, strong ,waterproof and easy to install features, it is usually a substitute for gypsum board and fiber cement board.
5. In many countries, normally it apply to enclosures for bathtubs, water pipes, etc.
6. Because it is easy to cut as any different shapes, it is very easy and fast formed to be small shelves, washbasins, shower benches and soap boxes.
7. XPS Tile Backer board is shapeable, you can make any decorative models according to your requirements.
