Gaphite EPS Floorheating Board Apply to φ16mm Pipe

  • Apply to Hydronic Underfloor Heating
  • Apply to φ106mm pipe
  • Made by Graphite EPS
  • Size: 600mm*600mm*33mm/35mm/38mm
  • Four Sides Interlock Design
  • Staples-free
  • 100% Vrigin Materials
  • B1 Grade Flamme Retardant
  • High Compressive Strength
  • Good Water Vapor Performance
  • Fast installation
Spread the love

Introduction:

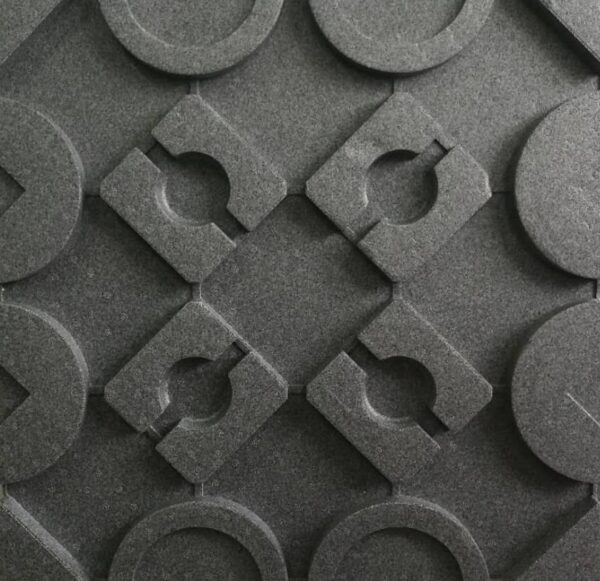

Gaphite EPS Floorheating Board is made of Graphite expanded polystrene. Within graphite, the thermal conductive is much more better.

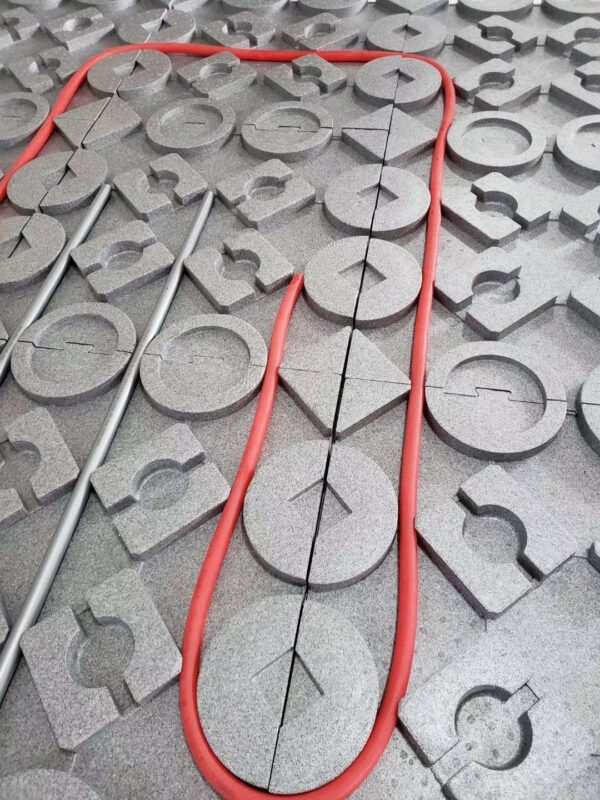

Its special  design ensures that heating pipe completely encased in concreste. Pipe raise up design increases the area between heating pipe and concrete,enhence efficiency of heating transfering.

Four side edge interlock design makes installation very easy, no need any staples,free cutting, saving labor cost and time a lot.

Specifications:

Description BSM-16 BSM-16A BSM-16B
Thermal Conductivity at 10℃ 0.032W/(m.k) 0.030W/(m.k) 0.028W/(m.k)
Heat Resistance 0.8(m2.k)W 1.1(m2.k)W 1.35(m2.k)W
Compressive Strength About 250KPA About 250KPA About 250KPA
Applied Pipe Diameter φ10mm φ10mm φ10mm
Total Thickness 33mm 35mm 38mm
Size(L*W)in mm 600mm*600mm 600mm*600mm  600mm*600mm
Thickness of Insulation Layer 15mm 17mm 20mm
Weight/M2 800g 850g 900g
Standard Package 8.3M2 8.3M2 8.3M2

Advantages :

1. Saving the pipeline laying time 50% at most.

2. Improve the working efficiency,only one labor can finish the work.

3. Strong enough for people standing on .

4. Embedded pipeline design, protect the pipeline from damage

5. No need staples during installation, avoid damage of the insulation layer.

6. Uniform pipeline laying, keep the same distance between pipes.

Gaphite EPS Floorheating Board is a kind of floor heat distribution panel in hydronic underfloor heating system. It is cost-effectively and bring a lot of conviences . We have many different models available, welcome to contact us for more details.

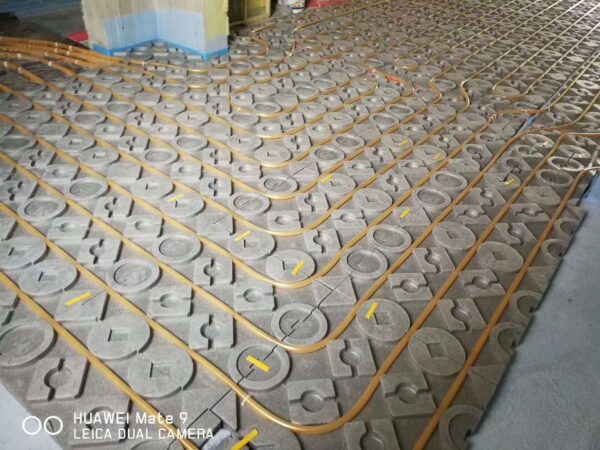

How to install EPS underfloor heating panel
