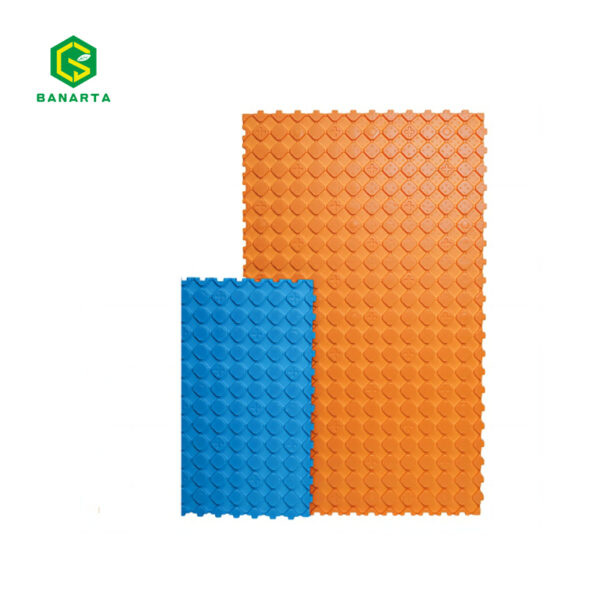

EPS Floorheating Radiant Panel Apply to φ10mm Pipe

  • Apply to Hydronic Underfloor Heating
  • Apply to φ10mm pipe
  • Size:1370mm*780mm*25mm/28mm/30mm
  • Four Sides Interlock Design
  • Staples-free
  • 100% Vrigin Materials
  • B1 Grade Flamme Retardant
  • High Compressive Strength
  • Good Water Vapor Performance
  • Fast installation
  • Multi Colors Available
Spread the love

Introduction of Mushroom Radiant Floorheating Insulation Panel :

EPS Floorheating Radiant Panel  is a kind of integrated panel made , it is composed of high density expanded polystyrene and food grade high impact HIPS film.

Its special mushroom design ensures that heating pipe completely encased in concreste. Pipe raise up design increases the area between heating pipe and concrete,enhence efficiency of heating transfering.

Four side edge interlock design makes installation very easy, no need any staples,free cutting, saving labor cost and time a lot.

One-piece design makes it good compressive strength , Water Vapor permeance and durability,100% virgin materials with B1 grade flame retardant makes its super quality.

Specifications of Mushroom Radiant Floorheating Insulation Panel:

Description BA-10 BA-10A BA-10B
Thermal Conductivity at 10℃ 0.033W/(m.k) 0.032W/(m.k) 0.029W/(m.k)
Heat Resistance 0.8(m2.k)W 1.1(m2.k)W 1.35(m2.k)W
Compressive Strength About 250KPA About 250KPA About 250KPA
Applied Pipe Diameter φ10mm φ10mm φ10mm
Total Thickness 25mm 28mm 30mm
Size(L*W)in mm 1370mm*780mm 1370mm*780mm 1370mm*780mm
Thickness of Insulation Layer 12mm 15mm 17mm
Weight/M2 800g 820g 850g
Standard Package 12.3M2 12.3M2 12.3M2

Advantages of Mushroom Radiant Floorheating Insulation Panel :

1. Saving the pipeline laying time 50% at most.

2. Improve the working efficiency,only one labor can finish the work.

3. Strong enough for people standing on .

4. Embedded pipeline design, protect the pipeline from damage

5. No need staples during installation, avoid damage of the insulation layer.

6. Uniform pipeline laying, keep the same distance between pipes.



EPS Floorheating Radiant Panel is a kind of floor heat distribution panel in hydronic underfloor heating system. It is cost-effectively and bring a lot of conviences . We have many different models available, welcome to contact us for more details.



How to install EPS underfloor heating panel
